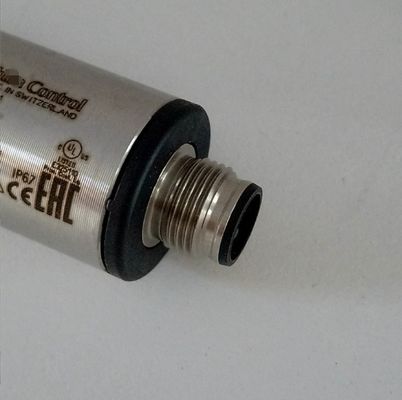

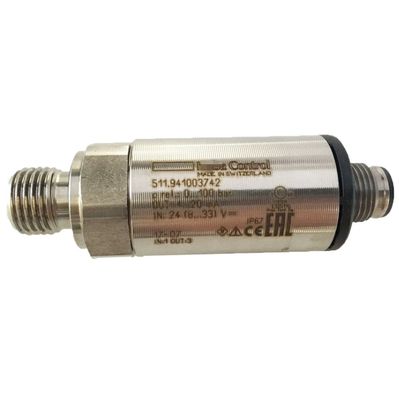

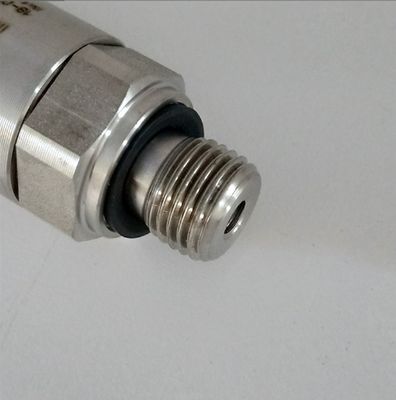

Huba Control 511 Pressure Sensor Transmitter 511.941003742 511.941003572 0-100bar 4-20MA

  • Huba Control 511 Pressure Sensor Transmitter 511.941003742 511.941003572 0-100bar 4-20MA
  • Huba Control 511 Pressure Sensor Transmitter 511.941003742 511.941003572 0-100bar 4-20MA
  • Huba Control 511 Pressure Sensor Transmitter 511.941003742 511.941003572 0-100bar 4-20MA
  • Huba Control 511 Pressure Sensor Transmitter 511.941003742 511.941003572 0-100bar 4-20MA
Lugar de origem Alemanha
Marca HUBA
Certificação /
Número do modelo 511.941003742
Quantidade de ordem mínima 1 unidade
Preço USD 70/PC
Detalhes da embalagem Embalagem original
Tempo de entrega 5 dias úteis
Termos de pagamento T/T
Habilidade da fonte 1000pc/mês

Contacte-me para amostras grátis e vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Nome Transmissor de pressão 511 Faixa de medição de pressão -1...600 barras
Tempo de resposta <2 ms (normalmente 1 ms) Mudança de carga <100Hz
mídia Meio de processo; Gás Quantidade mínima 1 unidade
Destacar

Huba Control 511 pressure transmitter

,

Precision pressure sensor 4-20mA

,

100bar pressure transmitter with warranty
Deixe um recado
Descrição de produto
Pressure transmitter 511
The compact pressure transmitters of Type 511 meet the highest demands in terms of robustness, accuracy, temperature stability, and EMC properties. They are therefore suitable for use in a wide range of industrial applications.
  • Compact and robust design for maximum operational safety
  • No media leakage when exceeding burst pressure
  • Minimal temperature influences on accuracy
  • Excellent EMC properties
  • Time-saving, fast customer-side cable assembly with quick cable screw connection



















Ambient condition
Ambient temperature
<125 °C
Material
Housing
Stainless steel 1.4305 (AISI 303)
Measuring element with media contact
Ceramic Al2O3 (96 %)
Pressure connection with media contact
Stainless steel 1.4305 (AISI 303)
Media stop system with media contact
PPS
Sealing material with media contact
FPM; EPDM; NBR; FPM spez.
Electrical data
Current consumption
<20 mA
Inverse-polarity protection
Short-circuit and reverse polarity protected. Each connection against each other with max. supply voltage.
Insulation voltage
500; 1000 VDC
Electrical connection
Cable 1.5 m; Cable quick connector; AMP connector (Junior Power Timer); M12x1 connector plastic thread; M12x1 connector metal thread; Connector DIN EN 175301-803-C (industry standard 9.4 mm)
Installation guide
Installation orientation
any
Approval
EMC compatibility
CE-compliant in accordance with EN 61326-2-3
UL
according to standard 61010-1
Shock according to IEC 60068-2-27
100 g, 11 ms half sine wave, all 6 directions. Free fall from 2 m onto concrete (6x).
Permanent shock according to IEC 60068-2-29
40 g over 6 ms, 1000x all 3 directions.
Vibration according to IEC 60068-2-6
20 g, 2 ... 2000 Hz with amplitude ± 15 mm, 1 octave / minute in all 3 directions, 50 continuous loads.
